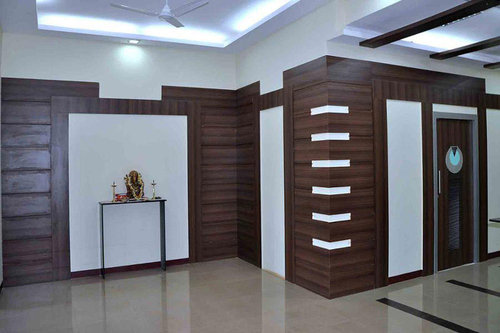

Vpanel Partition

Vpanel Partition
Vpanel Partition
Product Code : 11
Product Description

VPanel Partitions

Vpanel can be used with the aim of achieving cost effective and time saving solution for construction of dry walls. Vpanel has all the advantages of a masonry wall with added qualities preferred for construction. Vpanel is a user friendly product for installation and proves to be a better substitute for conventional walls and any other dry wall solutions.

Vpanel advantages:

  • Fire Rating 50mm – 60min, Fire Rating 75mm – 120min, Asbestos Free, Light Weight
  • Time Saving, Space Saving, Easy Workability, Easy to Dismantle and Relocate
  • Thermal Insulation, Sound Insulation, Water Resistant, Termite Resistant
  • High Strength, Eco- Friendly, Forget wood. The next is here

Manufacturing & aesthetics

Vpanel is manufactured using a unique process that bonds Asbestos Free Fibre cement facing sheets and Cementious core with expanded polystyrene beads to make a composite light-weight drywall panel with a unique semi-circular Tongue-Groove profile for easy joining. Vpanels are manufactured to meet the requirements of international standards for partition walls.

Fire & toxicity tests

Vpanel is tested for relevant fire and toxicity ratings. Vpanels are Non-Combustible and offer fire resistance of 50 minutes for 50mm,  120 minutes for 75mm and 180 minutes for 100mm when used as a non-load bearing wall system.

Combustion of Expanded Polystyrene beads in the panel core does not pose toxicity problem. The CSIRO Australia – Division of Building Research states that “for foamed polystyrene the potential toxic hazard appears to be no greater than that for wood”. Toxicity Index of Vpanel hence falls in same range as that of Plywood (3.0 to 6.0).

S. No.

Properties

Units

Specification

References/Standards

50mm

75mm

A

Physical Properties









I

Nominal Weight Per Sq. Mtr

Kg/M2

Weight Physical

34

46

II

Axial Load











Samples Size 2.5 Meter 0.6 Meters

KN/M

ASTM E 72

54

Safety Factor 2.0

90

Safety Factor 2.0



Samples Size 1.5 Meter 0.3 Meters

KN/M

ASTM E  72

65

Safety Factor 2.0

100

Safety Factor 2.0

III

Multi Point Load











2.9 Meter Span

Kg/M2

ASTM E 72

125

150



2.4 Meter Span

Kg/M2

ASTM E 72

200

250



1.5 Meter Span

Kg/M2

ASTM E 72

450

500

IV

Uniform Distributed Load (Bag Test)

KNm/m

ASTM E 72

2.5

3.75

V

Tensile Strength Parallel to Surface

N/MM2

IS 2380 1977

1

0.9

VI

* Core Bonding Strength

N/MM2

IS 2380 1977

0.3

0.35

VII

Modulus of Rupture

Kg/cm2

IS 2380 1977

42

31

B

Thermal Properties









I

Thermal Resistance

M2K/W

IS:3346 1980

0.3

0.55

II

Overall Thermal Transmittance

W/ M2K

IS:3346 1980

1.8

1.5126

C

Acoustic Properties









I

Sound Transmission Class



dB

IS:9901 (Part II)-1981

Din:52210 (Part IV)-1984

ISO:140 (Part III)-1995

33

36

D

Fire Related Properties









I

Fire Rating

Minutes

       B5 476:Part 20&22

60

120

II

Surface Spread Flame

Class

BS 476 : Part 7

Class - I

Class – I

III

Fire Propagation Index

Index

BS 476 : Part 6

3.4

3.3

IV

Ignitability

Performance

BS 476 : Part 5

Class – P

Class - P

V

Combustibility

Performance

BS 476 : Part 4

Not Combustible

Not Combustible

E

Resistance to Air & Water



  BS 4315.2 1970

No dampness,

No leakage,

Increase in

weight - 4.5% (max)

No dampness,

No leakage,

Increase in

weight - 4.5% (max)

* No Debonding at the Interface between facing sheet and core material

Vpanel of standard width of 0.6 meters are available in lengths of 2.4, 2.7, 3.0 & 3.3 meters and in thicknesses of 50mm, 75mm & 100mm
